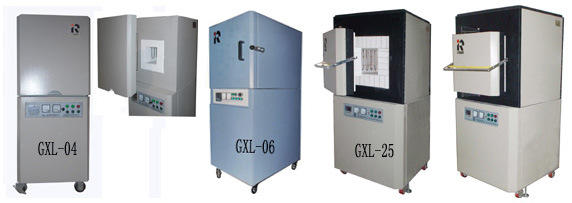

GXL Series high-temperature batch-type furnace
Batch-type furnace VIEW []
GXL Series High-temperature Vacuum Sintering FurnaceCharacteristics:GXL Series high-temperature batch-type vacuum sintering furnace is not only designed for pre
INQUIRYGXL Series High-temperature Vacuum Sintering Furnace
Characteristics:
GXL Series high-temperature batch-type vacuum sintering furnace is not only designed for pre-firing, sintering of electronic components, ceramic powders, but also for smelting of other ceramic products, RE components, magnetic materials. The whole furnace body is heat insulated and preserved by super-light materials and imported light bricks, together with single loop intelligent programmed temperature controlling instrument, it features wide range of temperature adjusting velocity (when increasing or decreasing), high productivity, energy-saving, etc. Besides, it is of good-looking, quite suitable for batch sintering small quantity production within factory, especialy for sintering up to 1750℃ in high vacuum.
Optional accessories
- Live recording and printing system of temperature curves
- Sweden KTL silimolybdenum bar
- Releaser
Remark: can be custom designed, with details recorded for ready use
Related data
|
|
Unit |
GXL-04 |
GXL-09 |
GXL-15 |
GXL-25 |
GXL-42 |
|
Effective width of the hearth |
mm |
160 |
185 |
200 |
250 |
300 |
|
Effective height of the hearth |
mm |
120 |
160 |
185 |
250 |
280 |
|
Effective depth of the hearth |
mm |
200 |
300 |
400 |
400 |
500 |
|
Sintering temperature |
℃ |
RT～1650（Max.1700℃） |
||||
|
Controlling accuracy |
℃ |
±1.5 Factory-packed programmed temperature controlling instrument imported from Japan |
||||
|
Uniformity |
℃ |
±4 |
±5 |
±5 |
±6 |
±6 |
|
Heating component |
Silimolybdenum bar |
|||||
|
Temperature controlling point |
1 |
|||||
|
Power for temperature rising |
kw |
6 |
12 |
18 |
24 |
30 |
|
Power for heat preservation |
kw |
3 |
6 |
8 |
10 |
16 |
|
Temperature increasing trend on the surface |
≤35℃ |
|||||
