General DescriptionsThis rapid granulator mixer is suitable for mixing two or more kinds of dry powder or granule raw materials for pharmaceutical industry, che
INQUIRYGeneral Descriptions
This rapid granulator mixer is suitable for mixing two or more kinds of dry powder or granule raw materials for pharmaceutical industry, chemical industry food stuff industry and so on. The structure of this machine is unique designed. Its mixing efficiency is high and without any dead coner. It is made of stainless steel. Its inner and outer wall is processed by polishing. Its mixing is uniform with wide scope of applications. The forced stirrer could also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture. Characteristics Unique structure of mixing cylinder, high mixing efficiency, free of dead corner and even mixing. The mixer is made of stainless steel, with inside and outside walls polished.

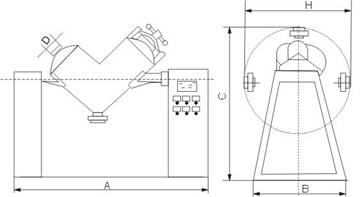

Outside Sketch

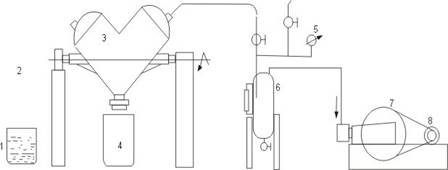

Vacuum Feeding Flow
- Material Cylinder
- Material Absorption Cylinder
- Blender
- Discharging Cylinder
- Vacuum Meter
- Safety Tank
- Vacuum Pump
- Motor
Technical Data
| Model | EH180 | EH300 | EH500 | EH1000 | EH1500 | EH2000 | EH2500 | EH4000 |
| Capacity（kg/h） | 40 | 80 | 100 | 200 | 300 | 400 | 500 | 800 |
| Vacuum pump | W2 | W2 | W2 Or SK-1.5 |
W3 Or SK-3 |
W3 Or SK-3 |
W3 Or SK-3 |
W4 Or SK-6 |
W4 Or SK-6 |
| Charge-in time（min） | 4-6 | 6-9 | 6-10 | 12-18 | 12-18 | 12-18 | ||
| Mixing time（min） | 4－8 | 6－10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Total volume（m3） | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2 | 2.5 | 4 |
| Cylinder speed（r/min） | 15 | 15 | 12 | 12 | 12 | 10 | 8 | 6 |
| Motor power（kw） | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 |
| Weight（kg） | 280 | 350 | 550 | 950 | 1100 | 1600 | 2040 | 2800 |
| Rotation diameter（mm） | 1400 | 1600 | 1900 | 2400 | 2520 | 2900 | 3100 | 3800 |
| Overall size (L×W×H)（mm） | 1780×840 ×1750 |
1880×1000 ×1850 |
2500×1220 ×2420 |
2975×1600 ×3000 |
3190×1600 ×3100 |
3800×1900 ×3310 |
3990×1990 ×3790 |
4945×2200 ×4230 |
